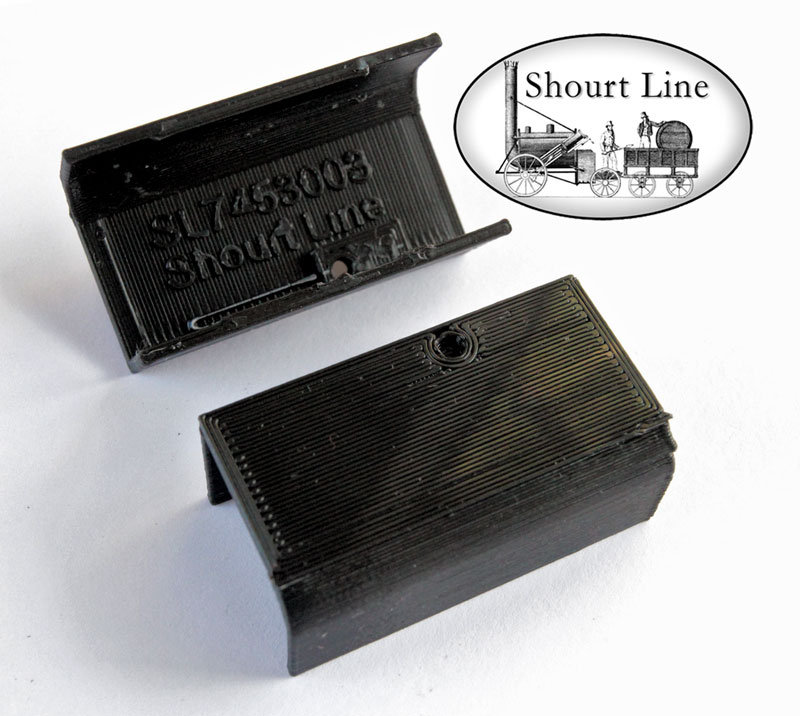

SL 7453003 3 Side Snap On Cover for SL Throttle/LED Controller NEW
Hide your LED controller inside you passenger car in seconds.
A hole in the top of the case guides your screw driver for easy adjustment of speed or brightness (dimming)
Made in the USA - for use with the Shourt Line DC and DCC/AC input controllers
(controller not included)
Snaps over the precision throttle/LED controller (sold separately) with or without a full wave bridge
(controller not included)
Made from high temperature material for operation up to 3 amps or 15 watts (regulator sold separately)
Shourt Line Direct Discount Price: $4.95 NEW
For questions or details on this or any of our over 5000 in stock products Call 310-622-4431
Description:
Pat. Pend. Design by the Shourt Line provides ventilation and free wire access at both ends of the case. Perfect for hiding your controller in plain sight.
The cover is open on the top and bottom for both ease of wiring and ventilation, however when mounted inside a car a controller is NOT visible.
Features:
- Made in the USA
- Protects your throttle/LED controller electronics (controller sold separately)
- High temperature material for up to 3 amps or 15 watts of controller output power
- Snap-On design no tools required to attach to controller
- The 3 side design allows for ventilation and easy top/bottom wiring
- Prototypical appearance by hiding you electronics
- A hole on the case aligns your screwdriver for super easy voltage adjustment
- Snaps on in seconds to a controller for mounting inside, outside or under cars, in buildings or accessories
- 2 year guarantee by ShourtLine.com
Specifications:
- Model number SL 7453003
- Fits all Shourt Line solder or pre-wired precision throttles/LED controllers models with or without a full wave bridge
- Same height as the Shourt Line precision throttle/LED controller
- Dimensions: 44 X 23.7 X 17.3 mm
- Material PLA+ (special high temperature plastic)
- Colors Available: Black (shown above), White, Silver, Wood, and Green
Optional Equipment (not included)

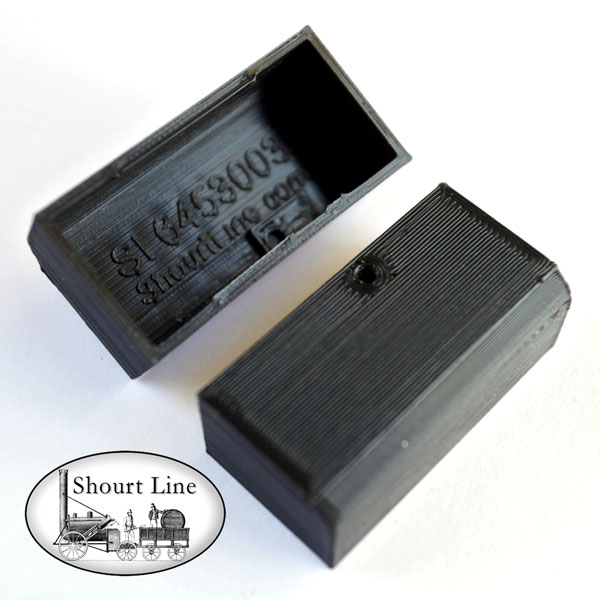

SL 6453003 5 side enclosed case for SL Precision Throttle/LED Controller
(SL 6453003 & controller not included)
Use our 5 side enclosed cover for under car mounting or track side applications (controller not included)
(SL 6453003 & controller not included)
The SL 6453003 cover provides bottom wiring or you can place holes or slots for passing wires to the top side of the controllerShourt Line Complete 4 LED Lighting Set for high efficiency lighting with analog and/or MTS/DCC systems
Consisting of the following items:
- SL 8104230 4 LED drop ceiling lighting for LGB 2 axle cars DC&DCC SL requires SL 8453003 LED controller $19.71
- SL 8453003 Precision Train Throttle & LED controller AC,DC or DCC - solder connections $8.49
- SL 6453003 5 side enclosed case for SL Precision Throttle/LED Controller (shown above) $5.95
OR
- SL 7453003 3 side open end case for SL Precision Throttle/LED Controller (this item) $4.95
- SL 6111047 4,700uF Anti-flicker Buffer 2 wire 18 inch micro power cable for SL LED controllers $7.95
- SL 4128510 LGB/PIKO BB wheel power cable connector set: 18in 24AWG micro black cable 2 conductor w SL-4128510 connectors and heat shrink weather proofing $9.95
- 1/2 PIKO 36167 BB Metal Wheelsets w/Pickups, 30mm, 2 Pcs $16.79 for 1 axle as shown below, $33.59 for 2 axles
Note, additional 4 LED boards or up to 300 more LEDs may added to the LED controller/buffer/power pickup wheel set above.
SL Cover Installation Instructions:
- Choose the type of input power for your application; DC or DCC/AC/DC input
- Choose the Shourt Line bare controller or pre-wired version to match your input power
Click here to view all the Shourt Line Precision Throttle/LED controller products
- Solder wires to the controller if not using our pre-wired version
(controller not included)
Photo above shows ourSL 8453003 Precision Train Throttle & LED controller wired for DC, AC or DCC track power input, buffer for anti-flicker and LED output (small red and black wires) for our SL drop ceiling LED fixtures (up to 300 LEDs)
- Choose either the SL 7453003 3 side cover (this item) or the SL 6453003 5 side enclosed cover (shown in options area above)
- Snap on the cover making sure to align the controller adjustment screw with the hole in the top of the case. Do not force tech case on, it will fit perfectly on Shourt Line controllers.
- Add 3M high temp adhesive pad for mounting
(controller not included)
- Mount in, on or under your car or building or as desired.
(car not included)
- Enjoy your prototypical fixture
Photos:
Mount the SL 6453003 on the interior wall for hiding your controller.The cover is open on the top and bottom for both ease of wiring and ventilation, however when mounted inside a car the electronics inside the cover can not be seen.
(car not included)
From outside the car the LED controller now is hardly visible and appears to be a utility box on the interior wall of the car. Available colors include; Black (shown above), White, Silver, Wood, or Green. The covers can also be easily painted to any desired color.
The cover just snaps on the Shourt Line Precision Throttle and LED controller in seconds!
(controller not included)
Available in Black (shown above right), White, Silver, Wood, or Green (above left). A green cover is shown above to better illustrate the access hole that securely holds your screw driver over the controllers 25 turn pot for precision voltage adjustment and dimming control.
(controller not included)
Wiring can be done on the bottom or top side of the circuit board - before or after mounting on the regulator. Note the bottom flanges that snap over the bottom of the controller to hold firmly in place. Controllers can be easily removed by gently pulling the sides of the cover apart and lifting the controller past the flanges and out.

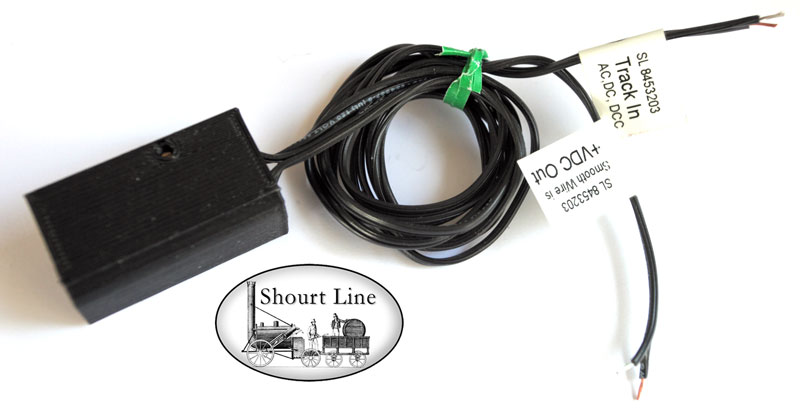

If you don't want to solder to the controller order the SL 7453003 3 side cover mounted on a SL8453203 Pre-Wired Controller with 3M pad and 24 in black input and output micro cables as shown above. Be operational in minutes; adjust to desired output voltage, connect to track power, connect to your lighting or other device, peel and stick the controller were desired and your are done. Perfect for car or train lighting, track side lighting, sound system, crossing guard or other devices.
Use the SL 6453003 3 side snap on cover to achieve a prototypical look!
For questions or details on this or any of our over 4000 in stock, new factory sealed items Call 310-622-4431
